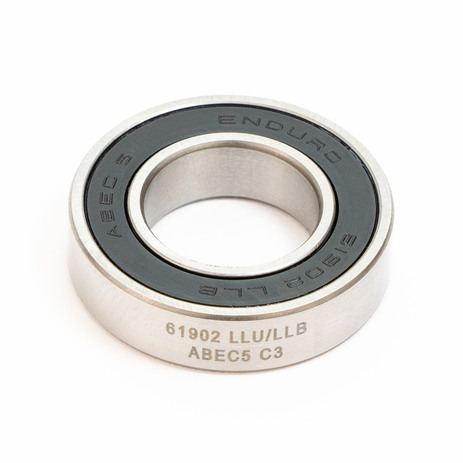

ABEC-5 LLU/LLB C3 Bearing

A radial bearing generally used as a hub bearing and which can be used as a pivot bearing, although the MAX-type version of this bearing is more suitable for use in suspensions. This ABEC-5 bearing features deep-groove design races, with grade 10 balls, dual-lip LLU full-contact seals facing outward to withstand heavy daily use and inclement weather, and lighter-contact LLB seals facing inward to retain 90% of the high-pressure waterproof grease fill.

The Enduro bearing line is available in high-carbon chromium steel, 440C stainless steel, ceramic hybrid, and XD15 with ceramic or stainless steel balls. Our bearings are always designed with the deepest possible races to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove, creating a full labyrinth that provides superior protection against the elements.

SPECIFICATIONS

61902 LLU/LLB - ABEC-5 Radial Bearing (C3 clearance) - 15mm x 28mm x 7mm -

Static load - 558lbf / 2.48kN
Weight - 27.4g
