Bottom Bracket Cup Bearing Tool Set BBT-30.4

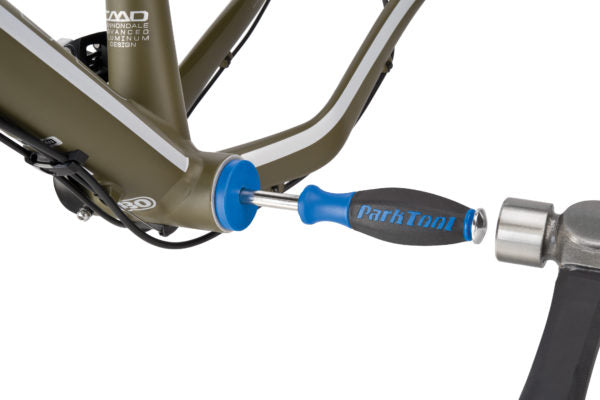

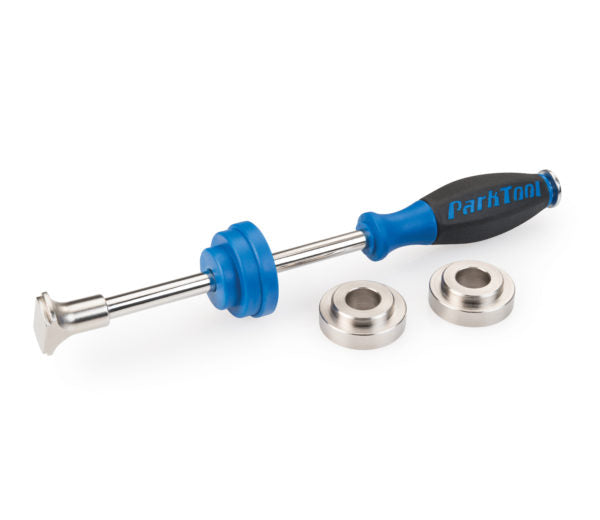

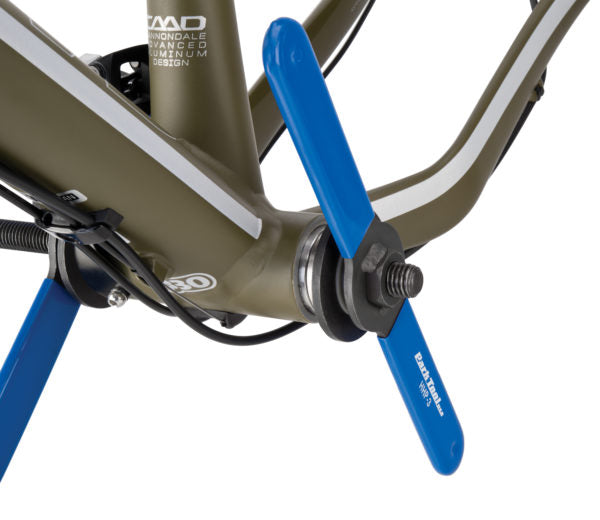

The BBT-30.4 is designed to install and remove the bearings and bearing units used in most bottom bracket systems that incorporate a 30mm spindle, including many BB30 and PF30 systems. The included BB30 bearing puller installs through the shell to easily remove bearings. It is extra-long to work with wider bottom bracket shells. The BBT-30.4 also includes a set of bushings that can be used in conjunction with a cup press (such as the HHP-2 or HHP-3 - sold separately) to quickly and accurately press new bearings into the bottom bracket shell.

DISCOVER THE PRODUCT IN ACTION

Fits press-fit bottom bracket bearing systems with a 30mm spindle, including some:

• BB30
• PressFit 30 (PF30)
• 386EVO
• BBright™
• FSA386

Some examples of compatible bottom bracket models include:

• SRAM® PF46
• SRAM® PF42
• Race Face® Cinch®

NOTE: Press-fit bottom bracket systems that use an inner sleeve may not be compatible with the BBT-30.4 removal tool, due to the necessary clearance inside the bottom bracket shell. Use the RT-1 for these systems.
