| Frame |
Ransom Carbon HMF with 6061 Alloy swingarm, Integrated Suspension Technology, adjustable geometry, Syncros cable integration system, BB92, UDH, Boost 12x148 mm and MX Ready setup |
| Fork |
RockShox ZEB Select+ Charger 3, HSC/LSC/LSR adjustments, 15x110 mm Maxle Stealth axle, 42 mm offset and 170 mm travel |
| Rear Shock |

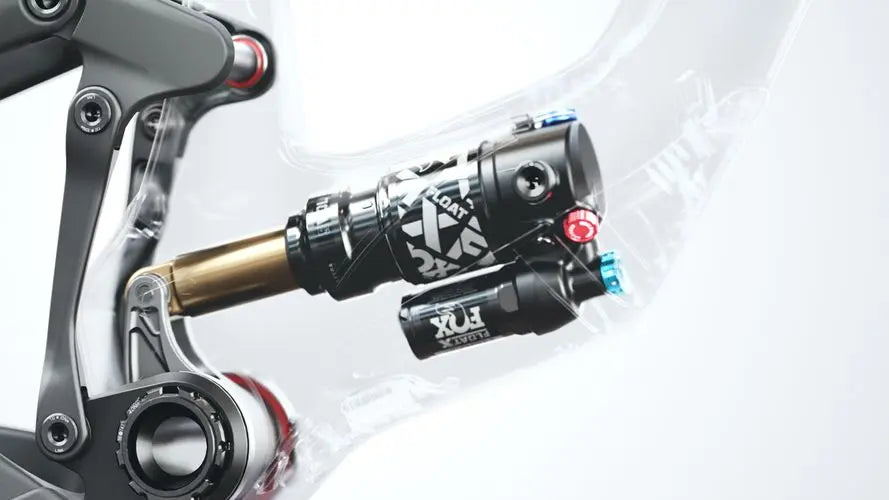

FOX FLOAT X NUDE EVOL Piggy Back Trunnion with SCOTT custom tune, 3 modes (Climb, Ramp Control, Descend), 170-130 mm adjustable travel, 205x65 mm |
| Remote System |
TracLoc Technology with remote control for rear suspension and dropper post, 3 suspension modes |
| Rear Derailleur |
SRAM NX Eagle, 12 Speed |
| Shift Levers |
SRAM SX Eagle Trigger |
| Crankset |
SRAM X1 1000 Eagle DUB Boost with 32T chainring and 55 mm chainline |
| Chain Guide |
SCOTT Custom |
| Bottom Bracket |
SRAM DUB PressFit integrated, 41x92 mm shell |
| Chain |
SRAM CN SX Eagle |
| Cassette |
SRAM NX PG-1210, 11-50T, 12 Speed |
| Brakes |
SRAM DB8 4 Piston Hydraulic Disc |
| Brake Rotors |
SRAM Centerline 200 mm front and rear |
| Handlebar |
Syncros Hixon 2.0 Alloy 6061, 780 mm width, 8° backsweep, 12 mm rise (S/M) or 20 mm rise (L/XL), with Syncros Endurance Lock-On grips |
| Stem |
Syncros AM 2.0 with cable integration system, Alloy 6061, 40 mm, 31.8 mm, 4° rise |
| Seatpost |
Syncros Duncan Dropper Post 1.5S, adjustable travel, 31.6 mm (140 mm in size S, 180 mm in M and 210 mm in L/XL) |
| Seat |
Syncros Tofino 2.0 with CrMo rails |
| Headset |
Syncros - Acros with angle adjustment ±0.6° and cable integration, ZS56/28.6 – ZS56/40 MTB |
| Wheelset |
Syncros Revelstoke 2.5 Tubeless Ready, 30 mm internal width, 28 spokes, Boost 15x110 mm / 12x148 mm, Syncros axle with integrated tool |
| Front Tire |
Maxxis Assegai 29x2.5", 60 TPI, EXO+, Tubeless Ready, 3C MaxxGrip compound |
| Rear Tire |
Maxxis Dissector 29x2.4", 120 TPI, DoubleDown, Tubeless Ready, 3C MaxxTerra compound |
| Extras |
RockShox ZEB fender |
| Accessories |
Syncros IS Matchbox Kit and Syncros Matchbox 8 multi-tool |
| Approx. Weight |
16.4 kg (tubeless setup, without Matchbox IS) |
| Max. System Weight |
128 kg (includes bike, rider, equipment and additional luggage) |
